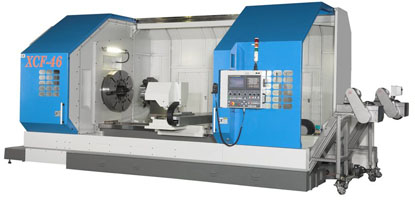

| Swing Over Bed |
1120 mm |
| Swing over carriage |
750 mm |
| Distance between centers |
1000~10000 mm |
| Width of bed |
840 mm |
| Spindle speed |
1-600 rpm |
| Spindle steps |
3 |
| Spindle nose |
A2-11; Option: A2-15, A2-20,A2-28 |
| Spindle motor |
22/26/ kW Options: 30/37 kW |
| Spindle bore |
165mm Options:230mm,318mm,360mm,410mm,535mm |
| Front bearing ID |
200 mm |
| TURRET |
|
| Type |
Hydraulic/Servo |
| Number of tool stations |
4 or 10 |
| Tool height for square tool |
50/32 mm |
| Tool shank diameter |
50 mm |
| X axis travel (box way) |
560mm |
| Z-axis travel (box way) |
1300~10300 mm |
| Rapid traverse (X-axis) |
12 m/min |
| Rapid traverse (Z-axis) |
10 m/min |
| Ballscrew diameter (X-axis) |
50 mm x P10 |
| Ballscrew diameter (Y-axis) |
63mm X P10 (over 6m 80mm x P10) |
| Quill diameter |
235 mm |
| Quill travel |
250 mm |
| Quill taper |
MT #6 |
| C-AXIS (option) |
|
| Turret |
Servo VDI50, 12-station |
| Motor |
7.5/11 kW |
| Speed |
5,000 rpm |
| Spindle resolution |
0.001° |
| Y-AXIS (option) |
|
| Travel |
+/-110 mm |
| Rapid traverse |
12 m/min |
| Ballscrew diameter |
40 mm x P10 |
| Bedway width |
254 mm |
| MACHINE SIZE W x H |
2905 x 2860 mm |
