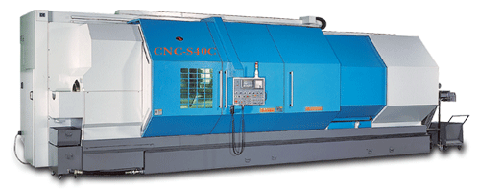

| Center height |
505 mm |
| Swing over bed |
1010 mm |
| Swing over Carriage |
680 mm |
| Distance between centers |
2000~6000mm |
| Width |
1475mm |
| Spindle speed |
1-600 rpm |
| Spindle nose |
A2-15; Option: A2-20, A2-28 |
| Spindle motor |
30/35 HP (22/26/ kW) Options: 40/50 HP (30/37 kW), 50/60 HP (37/45 kW) 80/100 HP (60/75 kW) 137 HP (100 kW) |
| Spindle bore |
230mm Options: 318m, 360mm, 410mm, 535mm |
| Number of tool stations |
12 |
| Tool shank cross section |
40mm |
| Tool shank diameter |
60mm |
| X axis travel (box way) |
535mm |
| Z-axis travel (box way) |
same as distance between centers |
| Cutting feedrate |
0.001-500 mm/rev |
| Ballscrew diameter (X-axis) |
50mm x P10 |
| Ballscrew Diameter (X-Axis) |
63mm X P10 (over 5m use linear motor) |
| TAILSTOCK |
|
| Quill diameter |
23 5mm |
| Quill travel |
250 mm |
| Quill taper |
MT #6 |
| Turret |
--- |
Servo VDI50, 12-station |
| C- axe (option) |
|
| Motor |
--- |
7.5/11 kW |
| Speed |
--- |
5,000 rpm |
| Spindle resolution |
--- |
0.001° |
| AC Servo |
12 HP (9 kW) |
| Hydraulic pump motor |
5 HP (3.75 kW) |
| Coolant pump motor |
1.5 HP (1.1 kW) |
| W x H |
3470 x 3400 mm |
| L (2000mm) |
8100mm |
| Weight |
31000kg |
