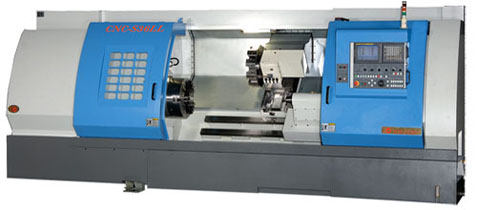

| Technical specification S 36 |
| Model |
S36 |
S36L |
S36LL |
| Swing diameter over bed |
780 mm |
| Max swing over slide |
500 mm, 550 mm |
| Max turning lenght |
700mm |
1200mm |
1700mm |
| Distance between centers |
850mm |
1350mm |
1850mm |
| Max spindle speed |
1200 ot/min |
| Number of spindle steps |
3 |
| Spindle nose |
A2-11 |
| Main motor power |
30/35 HP (22/26 kW) Opce: 40/50 HP (30/37 kW) |
| Spindle boring |
165 mm |
| Number of tool post station |
10; Option: 12 |
| Tool capacity |
32 mm |
| Travel X axe |
275 mm |
| Travel Z axe |
800 mm |
1300 mm |
1800 mm |
| Rapidfeed X axe |
15 m/min |
| Rapidfeed Z axe |
24m/min |
24 m/min |
15 m/min |
| Y axe(option) |
|
|
|
| Tracel Y axe |
55 mm |
| Rapidfeed Y axe |
8 m/min |
| Ballsrew diameter/pitch Y axe |
40mm x P10 |
| C-axe (option) |
|
|
|
| Turret |
12-position servo turretVDI |
| Motor |
Fanuc Alpha 3 AC spindle motor |
| Speed |
5000 rpm |
| Tailstock travel |
750mm |
1250mm |
1750mm |
| Tailstock quill dimaeter |
110mm |
| Tailstock quill travel |
100mm |
| Tailstock quill taper |
MT #5 |
Dimensions |
|
|
|
| l x w x h |
4200 x 1900 x 2100 mm |
4700 x 1900 x 2100mm |
5200 x 1900 x 2100mm |
| Weight |
7,100 kg |
8200 kg |
9250 kg |
